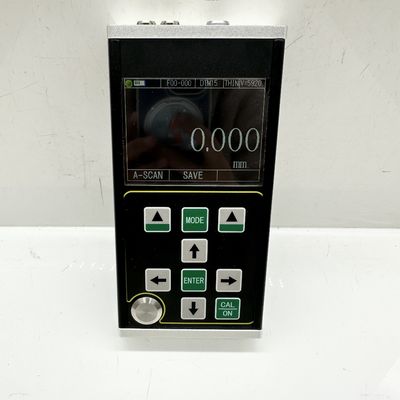

TG-5700 High-Precision Ultrasonic Thickness Gauge
The TG-5700 is a new generation handheld high-precision digital ultrasonic thickness gauge featuring A/B scanning capabilities. Utilizing the pulse reflection principle of ultrasonic thickness measurement, it delivers exceptional accuracy with measurement resolution of 0.001mm and range as thin as 0.15mm (steel).
Product Overview
This advanced instrument accurately measures plates and processed components while monitoring corrosion-induced thinning in pipes and pressure vessels during service. Ideal for petroleum, chemical, metallurgy, shipbuilding, aerospace, and energy industries. Complies with Calibration Specification for ultrasonic thickness gauge (JJF 1126-2004).
Main Function Characteristics
- Multiple display modes: A-scan, B-scan, and numerical display
- Wide measurement range with unique "multiple echo" technology for ultra-thin parts (minimum 0.15mm steel)
- High precision measurement with resolution up to 0.001mm and repetition resolution of ±0.002mm
- Penetrating coating and echo-to-echo measurement for materials with surface paint and coatings
- Multiple measurement modes: MB-E, E-E, ME-E for conventional workpieces; THIN mode for thin parts
- Numerical modes: conventional thickness, difference/reduction rate, and maximum value modes
- Dual gain modes: automatic and manual gain control
- Energy-saving function with manual/automatic shutdown settings
- Supports various probes including double crystal and single crystal, up to 20MHz high-frequency
- Mass storage capacity: 100,000 thickness values, 500 A-scan waveforms, 500 B-scan waveforms
- 3.5-inch color TFT-LCD display with 320x240 QVGA resolution
- Multiple calibration methods: one-point, multi-point, and manual calibration
- Metric/imperial unit conversion and English language support
Applicable Materials
Suitable for measuring thickness of metals (steel, cast iron, aluminum, copper), plastics, ceramics, glass, resin, fiberglass, and other ultrasonic conductors.
Basic Principles
Ultrasonic thickness measurement operates similarly to light wave measurement. The ultrasonic pulse emitted by the probe propagates through the material and reflects from interfaces. Material thickness is determined by precisely measuring ultrasonic propagation time through the material.
Specification Parameters
Note: The company reserves the right to make technical modifications without prior notice.
| Parameter |
TG-5700 Specifications |
| Probe type |
Single crystal probe / double crystal probe |
| Measuring range (45# steel) |
0.15mm - 1800mm |
| Indication stability |
Zero crossing and multiple echo technology for high stability and reliability |
| Measurement frequency |
4Hz, 8Hz, 16Hz |
| Resolution |
0.1mm, 0.01mm, 0.001mm (0.01inch, 0.001inch, 0.0001inch) |
| Accuracy |
0.001mm |
| Pulse generator |
Negative square wave emission with automatic probe matching |
| Sound velocity range |
400-19999m/s |
| Calibration block |
4mm (steel) |
| Automatic shutdown |
5 minutes, 10 minutes, 20 minutes, or manual shutdown |
| Probe calibration |
One point calibration, multi-point calibration |
| Gain |
Automatic gain control, Manual gain control (0-70dB) |
| Detection mode |
Radio frequency (RF), positive half wave (POS), negative half wave (NEG), full wave (FULL) |
| Measurement mode |
MB-E, E-E (penetration coating), ME-E (multiple echo), THIN (thin wall) |
| Numerical mode |
Thickness value, difference/reduction rate, maximum/minimum value |
| A-scan mode |
Available |
| B-scan mode |
Available |
| Coupling indication |
Available |
| Battery indication |
Available |
| Language |
English |
| Unit |
mm/inch |
| Menu operation |
Available |
| Software function |
Dynamic gate setting, blanking, echo blanking, echo freezing, translation and scaling |
| Storage function |
100,000 thickness values (100 groups), 500 A-scan waveforms, 500 B-scan waveforms |
| Host program upgrade |
Available |
| Display |
3.5" QVGA (320×240) color TFT-LCD screen |
| Data transmission |
RS-232 serial communication and USB |
| Working temperature |
-10℃ to +50℃ (special requirements: -20℃) |
| Working voltage |
Four AA batteries with low voltage prompt |
| Overall dimension |
204 x 100 x 36 (mm) |
| Total Weight |
310 g (Without battery) |
| Battery |
4 AA dry batteries |

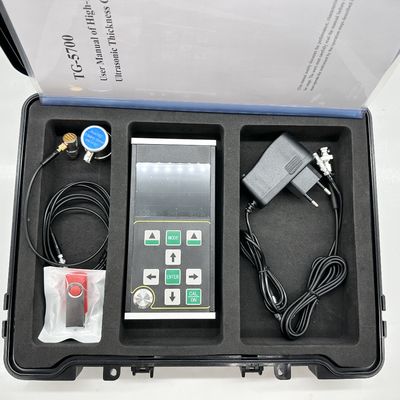

Standard Delivery
- Main unit TG-5700 - 1pc
- 2.5M Φ20 single element transducer (testing range 4-1800mm) - 1pc
- Couplant bottle - 1pc
- Carrying case - 1pc
- Instruction manual - 1pc
- Calibration certificate - 1pc
Optional Accessories
- Various probe with different frequency, single probe 8mm/10mm/12mm, and TR ultrasonic thickness probes
- Various step wedge blocks
- PC Data software
Packaging
Standard export package, canton
Optional Probes
| Probe Model |
Frequency |
Size |
Range |
| TS400 Double crystal probe |
10MHz |
5mm |
0.5-50mm |
| TS500 Double crystal probe |
5MHz |
5mm |
1.0-65mm |
| TS510 Double crystal probe |
5MHz |
10mm |
1.0-500mm |
| DTM15 Single crystal probe |
15MHz |
6mm |
0.15-22.5mm |
| DTM7.5 Single crystal probe |
7.5MHz |
6mm |
0.5-22.5mm |
| DTM10 Single crystal probe |
10MHz |
6mm |
0.3-22.5mm |
| DTM5 Single crystal probe |
5MHz |
6mm |
1.0-22.5mm |
| BD510 Single crystal probe |
10MHz |
10mm |
1-1000mm |
| BD212 Single crystal probe |
2MHz |
12mm |
4-1800mm |
| Double crystal probe cable |
- |
| Single crystal probe cable |
- |
