Application

HD-150 pipe locator and porosity detector is easy to operate. The reliability and detecting veracity have been greatly increased. Without dredging up the soil, this instrument can detect conveniently and accurately the position, directions, depth, leaking points. It is one of the most advanced instruments in China. It's the necessity of pipe laying, chemical ect.

Technical parameters

2. Instrument system introduction

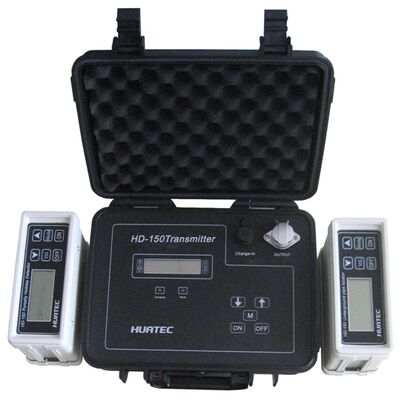

HD-150 Embedding Pipe Outer Antisepsis status Inspecting Instrument mainly include

sending set, detecting instrument, leak hunting instrument and other accessories.

This instrument uses complanation design, it's moistureproof and dustproof, it also improves the reliability in the field using.

(1) Sending set function: It's used to send specifically frequency Hertzian waves, it's

usually usedwith receiving set. It can detect conveniently and accuratelythe position,

directions, depth,leeking points.

(2) Detecting instrument function: Detecting instrument is used in detecting pipe position,

directions, depth. It also can detect the pipe length with the diatance calculating

instrument .

Technical parameters

(1) Sending set parameters

(2) Detecting instrument parameters
1. Position windage: <5cm
2. Detcting range: < 6m
3. Diatance calculating precision: <0.1% of detecting distance
4. Power: 9.6V charging pile
5. Working temperature: -10c- 50c
6.Size: 165*110*68mm

(3) Leak hunting instrument parameters
1. Leak hunting precision: >0.5mm2
2. Power: 9.6V charging pile
3. Working temperature: -10c- 50c
4. Size: 165*110*68mm
