HAL-3000 Dual Channel Acoustic Emission Leak Detector for Valve & Pipeline Leak Testing

HAL-3000 Dual Channel Acoustic Emission Leak Detector for Valve & Pipeline Leak Testing

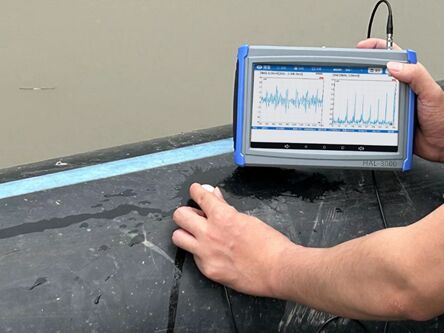

HUATEC HAL-3000 Acoustic Emission Valve (Pipeline) Leak Detector is an acoustic emission detector with dual-channel synchronous acquisition function. It is easy to operate,has high real-time performance and has strong battery life. It is suitable for industrial applications.

Product Features

• Simple operation, high real-time performance, strong battery life

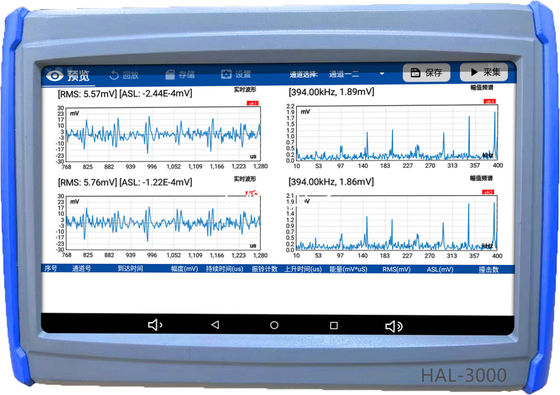

• With dual-channel waveform detection, each channel will display real-time waveform and amplitude spectrum
• There are three different sampling rate and gain options, and there are four optional sampling points
• FFT spectrum analysis function, allowing you to view data FFT spectrum information at any time
• Built-in 10000mA lithium battery, the normal use time is 8 hours, and it can be charged by power supply
• It has a supporting PC-side software for displaying the waveform of the stored waveform data, and can print the word document corresponding to the waveform diagram
• Using RMS and ASL as leak detection parameters, the alarm value can be calibrated. If the calibration value is exceeded, an alarm prompt will be given
• There is 64GB storage space, with manual and automatic data storage functions, and data information is stored according to the timestamp as the file name
• Frequency band filtering can be selected based on actual scenarios

Basic Parameters

Standard configuration
