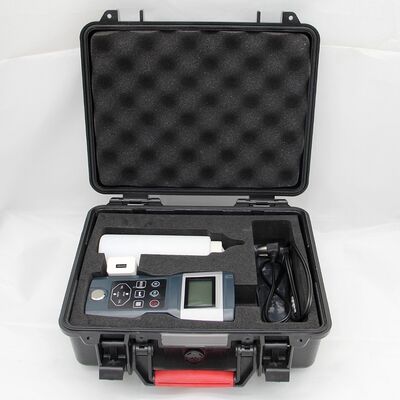

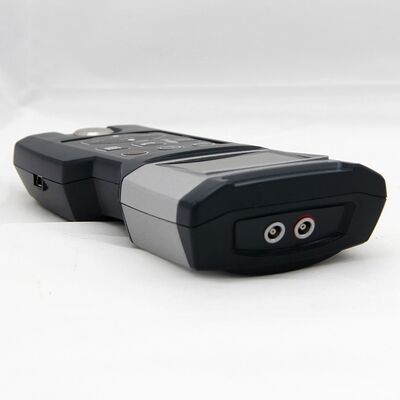

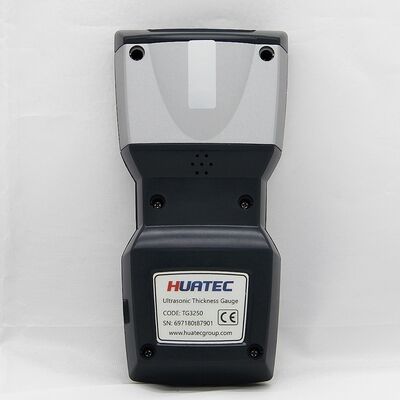

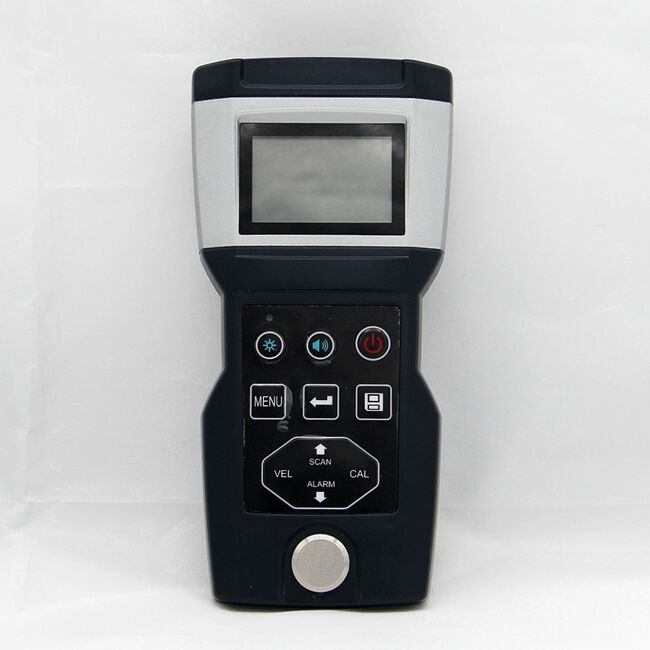

TG-3250 High Precision Digital Thru Coating Ultrasonic Thickness Gauge

High Precision Digital Thru Coating Ultrasonic Thickness Gauge

TG-3250 is a high precision digital ultrasonic thickness gauge. Based on the same operating principles as SONAR it is capable of measuring the thickness of various materials with accuracy as high as 0.001 millimeters, or 0.0001inches. It is adapted to measure the thickness of good conductor for ultrasonic, such as metal (steel, cast iron, aluminum, copper), plastic, ceramic, glass, glass fiber and so on.

Technical Parameters

Features:

• High precision timing chip & V-Path model used for precision measurement
• Real-time Temperature Compensation Technic supporting One-time probe calibration for long term usage.
• Thru-paint measurement (Standard Version), simultaneously measure coatings and material thicknesses (Advanced Version)
• Bluetooth & Mini-USB interface for printing & communication, host software upgradable
• Can work with dual element probe and also single element probes.
• This instrument can be used for all kinds of plates and various machining parts for accurate measurement, suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, fiberglass and any other ultrasonic thickness of the good conductor, can be widely used in petroleum, chemical, metallurgy, manufacturing, ship, aviation, aerospace and other fields.

Main Functions:

• Support Pulse-Echo(P-E), Echo-Echo (E-E), Interface-Echo (I-E) measurement modes
• 16 types gain optional, gain adjustable, 7 types of transmission frequency
• Scan mode, min/max capture mode, differential mode & alarm mode support
• Sound velocity calibration by known thickness
• Storage capacity of 1000 measurements with thickness, velocity, time, etc.
• Communicate with PC or smart phones, support online measurement & command control (OC version)

Probe Parameters

The technical indicators (the measurement range is related to the properties of the material to be measured, coupling status and other influencing factors, and the measurement range of 45# steel is shown in the table)

Pro

Version Comparison
