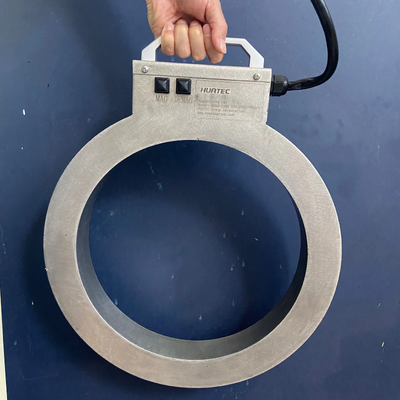

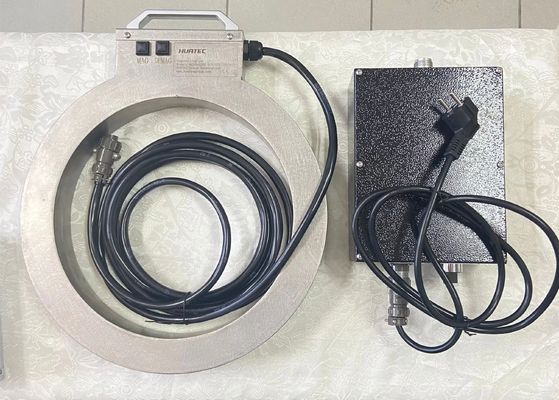

Over Temperature Alarm Magnetization Closed Type Coil Flaw Detector with Demagnetization

Over Temperature Alarm Magnetization Closed Type Coil Flaw Detector with Demagnetization

I. Main parameter

1, Input current: 8A, determined according to the set values of magnetization and demagnetization, the standby current is 0.5A;

2, Power supply: AC200-240V 50 / 60Hz;

3, Magnetizing current: 8A (8A * 400T = 3200AT);

4, Central magnetic field: Max 110Gs;

5, Demagnetization current: 8-0A;

6, Coil size: Φ 300mm, 400 turns in total;

7, Temporary load rate: > 30%;

II. Model guide

Optional function: Demagnetization, foot switch

III. Function introduction

1, Magnetization - start the electromagnetic field to magnetize the workpiece;

2, Demagnetization - demagnetization field starts to demagnetize the workpiece;

3, Over temperature alarm - the coil has a built-in 75 ℃ temperature sensor. When the set temperature is exceeded, it enters the protection state;

IV. Installation and commissioning

Installation:

1. The equipment shall be installed in a dry environment without metal dust, corrosive gas and inflammable and explosive articles;

2. The temperature of surrounding medium shall not be lower than - 10 ℃ and not higher than + 40 ℃;

3. The relative humidity of the air shall not be greater than 85%;

4. The pipe and wire connection between the installation equipment and each auxiliary facility shall be connected according to the indication sign and plug base;

5. Power supply (power supply, air source, etc., according to equipment installation environment and operation conditions), and the equipment shell is reliably grounded;
