NDT X-ray Ceramic Tube for NDT Equipment Flaw Detector XXG2505
Characteristics:
The HUATEC XXG series super small size x-ray flaw detector produced by our company, HUATEC Group Corporation, which adopt variable-frequency and constant-frequency pulse techniques. The XXG series controllers has novel structure, perfective performance and convenient to carry etc. characters. It based on microcomputer control system and modular structure, which makes integral machine obtain better stability and reliability. For the convenience of customers, the machine also offers the function of aging, which increase its service life. Our generator adopts gas insulation, forced air cooling and grounded anode, and has excellent properties of small volume and light weight. The products have been widely used for nondestructive testing in spaceflight industry, welding engineering industry, shipbuilding industry, boiler pipe industry, petrochemical engineering industry, aircraft manufacturing, maintenance industry, automotive industry, defense industries, etc.
Main purpose
1. Quality inspection and defect identification
2. Assembly verification and structural analysis
3. Foreign object detection and fault analysis
4. Thickness measurement and corrosion assessment
·Pipeline and vessel wall thickness measurement: In industries such as petrochemicals and power plants, it is used to measure the corrosion and thinning of pipelines and boiler walls after long-term use, and evaluate their remaining life and safety.
·Coating and plating thickness measurement: measure the thickness of a uniform coating layer.

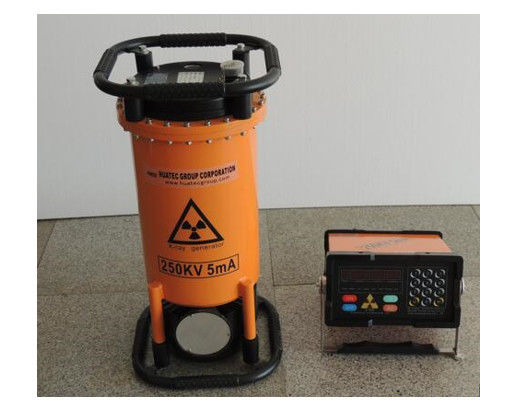

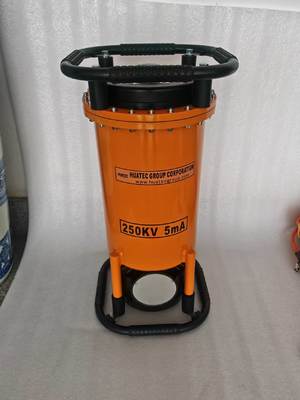

Super small XXG2505 Ceramic tube orientation/directional
Main technical parameters
|
TYPE
ITEM
|
XXG2505
|
|
Max Penetration thickness Steel (A3)
|
40mm 5minutes
|
|
Focal Distance
|
600mm
|
|
Exposure Time
|
5min
|
|
Film Type
|
Agfa D7
|
|
Double lead foil Intensifying screen
|
0.03
|
|
Darkroom Disposal
|
20±2℃
|
|
Development
|
5minutes
|
|
Blackness
|
1.5
|
|
Input
|
Voltage (V)
|
220V±10% 50―60Hz
|
|
Capacity (KVA)
|
2.0
|
|
Output
|
Tube voltage (KVP)
|
100-250
|
|
Tube current (mA)
|
5
|
|
Stability
|
±1%
|
|
X-RAY
Tube
|
Focus mm2
|
2.0×2.0
|
|
Radiation Angle
|
40±5°
|
|
Sensitivity
|
k≤1.8%
|
|
Operation Mode
|
Intermittent operation, Radiating time to cooling time is 1:1
|
|
X-Ray
Controller
|
Dimension
|
270×270×140
|
|
Weight
|
9kg
|
|
Circuit Structure
|
Micro-computer control ,Modular structure,Voice prompt
|
|
X-RAY
Generator
|
Cooling
|
Force air cooling
|
|
Insulation
|
SF6 Gas Insulation
|
|
Working Pressure
|
0.35Mpa-0.45Mpa
|
|
Dimension
|
270×270×615
|
|
Weight (kg)
|
21kg
|
|
Working Temperature
|
-10℃―+40℃
|
Standard Delivery
|
Directional ceramic X-ray tube
|
1 Pcs
|
|
|
Generator
|
1 Set
|
|
|
High voltage joins cable
|
1 Pcs
|
25 Meters
|
|
Controller
|
1 Set
|
|
|
Power cable
|
1 Pcs
|
10 Meters
|
|
Grounding cable
|
1 Pcs
|
5 Meters
|
|
Accessories
|
1 Set
|
|
|
(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
|
Optional accessories:
Testing platform, IQI/wire penetrameter, lead letter/digits, lead tape, Cassette, lead screen, personal dosimeter, film viewer, densitometer, film developer, dark room light, RT calibration block etc.
