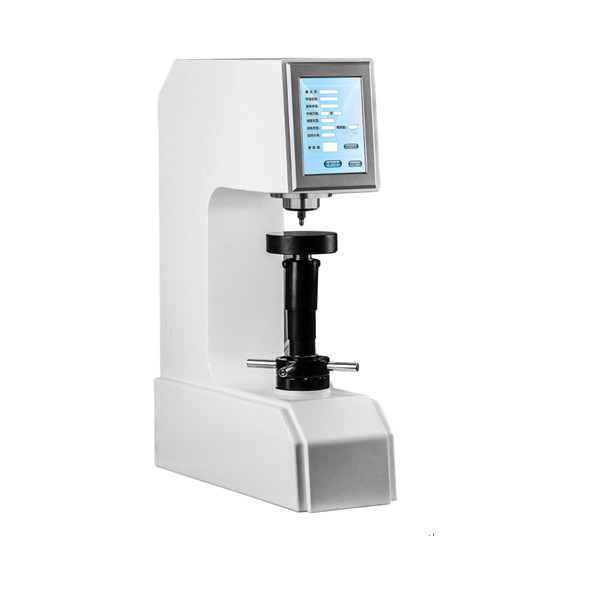

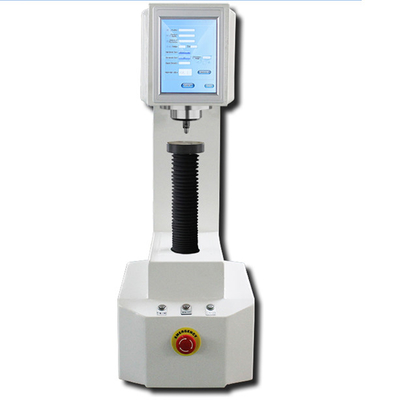

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Model

HR-150DX(H)

Beginning test force

10kgf(98.07N)

Total test force

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell hardness scale

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV

Test range

HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120  HRM:85-115, HRR:114-125

Duration time

0-99s

Hardness resolution

0.1HR

Error of test force

＜1.0%

Data output

LCD display

data storage

Measurements are stored on a usb drive in EXCEL format

Conversion scale

Surface Rockwell, Brinell and vickers

standard

BSEN 6508, ISO 6508, ASTM E18, GB/T230

Maximum allowable height of specimen

400mm

Distance from head to wall

200mm

Size

560×220×980mm

Weight

90kg

Power

AC220+5%,50～60Hz

Name

Quantity

Name

Quantity

Diamond head

1PC

Diameter 1.5875mm ball indenter

1PC

Hardness block (2PCS HRC and 1PC HRB)

total 3 pieces

Large, medium and V type test stand

Each one

Fuse 2A

2pcs

Adjust the foot horizontally

4pcs

Usb flash drive, touch pen

Each one

Dust bag

1pc

Power

1pc

instructions

1pc

Product certificate and warranty card

1pc
