Ropes With Diameter From 1~300mm Portable Magnetic Rope Detector

Ropes With Diameter From 1~300mm Portable Magnetic Rope Detector

Specification

• For inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8") standard size is 10-30mm, other different sensor could be customized.
• Speed along the rope during inspection - from 0 to 6 m/s (0 to 6,54 yards/s)
• Onling detect rope’s flaw like booken,abrasion,corrosion,distortion,skip steel wire etc.
• The test value could display broken quantity and broken area
• USB interface sampling and analysing, online sound alarm and display test value

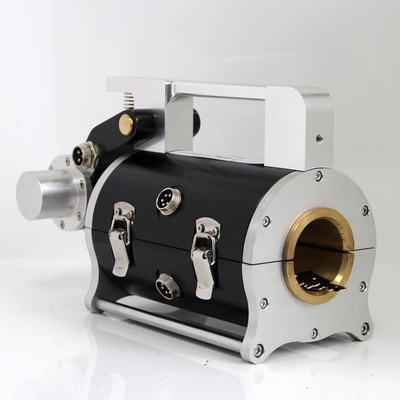

• Sensor is circle shape, circumference encircle,axial magnetization, make the steel wire rope magnetize instant saturation.
• Sensor is metal shell,waterproof,dustproof, quakeproof, dampproof.
• High stability, reliable feature, high precision, anti-interference, data accuracy
• Software is apply to Windows98／2000／xp／Vista/windows7 many kinds of PC system
• Certificate standard is meet ASTM1571
• Widely use in Mine, sodo, hoisting equipment, elevator, port machinery, cable bridge etc.
• Size 330 x 235 x 190 mm (13" x 9,3" x 7,5 ")
• Weight 15 kg (33 lbs)

Features

• Test range(closed style sensor): Φ1.5—300 mm (standard size is 10-30mm, other different sensor could be customized)
• The relative speed of sensor and the wire rope is 0.0—6.0 m/s, optimal:0.3—1.5 m/s
• The best space of sensor’s guide bushing and wire rope is 2—6 mm, allowable space:0—15mm
• Dual-function: LMA and LF capability
• Speed does not affect readings
• Accurate distance wheel assembly
• Easy to install and re-install
• Easy to handle and fix on the rope
• 3 changeable hall sensor units
• Temperature range -10 +50°C
• PC software control directly, continuously testing rope length more than 10000m
• Power: AC 220V±10％
• Working temperature: -20℃～40℃
• Storage temperature: -40℃～60℃
• Relative humidity: ≤90％RH

applications but not limited with:

Inspection of mining ropes, aerial ropeways (mostly ropes of chairlifts and gondola lifts), guy (suspension) ropes of bridges.

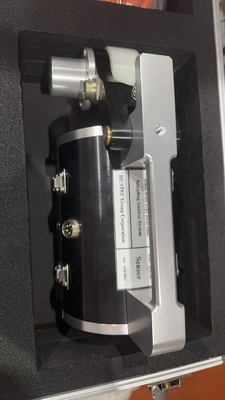

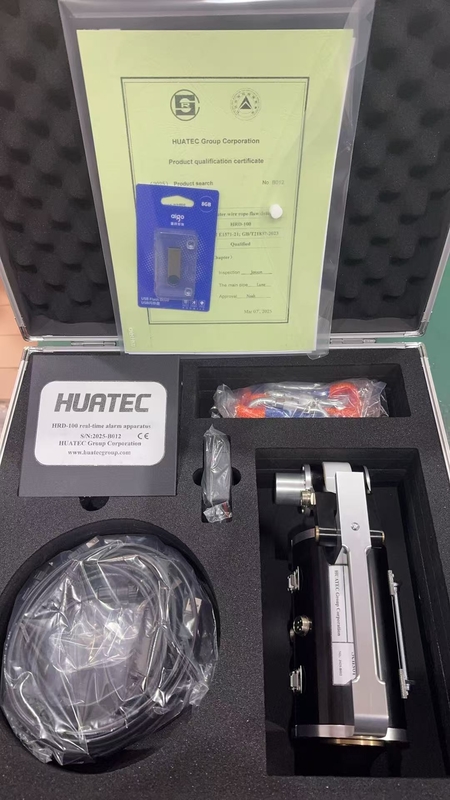

Standard accessories

Probe　　 　1 set　　          Real time alarm 　　　 　1pc
　　Signal cable 1pc　　 　  HRD PC analyse software 　 1set
　　laptop(optional)　 1pc 　 　Communication cable 　 1pc
　　Charger　　　　1pc           Tool 1set
       Instruction manual      1set　

Related product:

More wire ropes sensor (open style) is mainly use on elevator, the test value is the flaw’s total amount.

Standard size is 8-20mm, other size could be customized(max size is 70mm)
