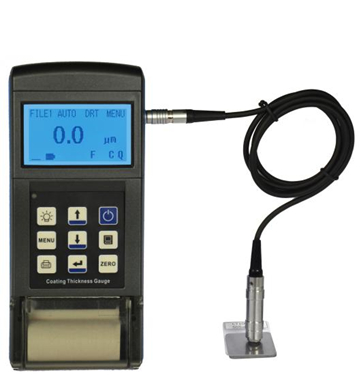

TG110 High Precision Inbuilt Printer Coating Thickness Gauge
This compact, handy pocket gauge is designed for non-destructive, fast and precise coating thickness measurement. The principal applications lie in the field of corrosion protection. It is ideal for manufactures and their customers, for offices and specialist advisers, for paint shops and electroplaters, for the chemical, automobile, shipbuilding and aircraft industries and for light and heavy engineering.
Technical parameters
|
Probe type
|
F
|
N
|
|
Measuring principle
|
Magnetic induction
|
Eddy current
|
|
Measuring range
|
0～1500 um
|
0～1500 um
|
|
Low range resolution
|
0.1 um
|
0.1 um
|
|
Accuracy
|
Zero calibration
|
±(2%H+1) um
|
±(2%H+1) um
|
|
Two point calibration
|
±[(1～2)%H+1] um
|
±[(1～2)%H+1] um
|
|
Measuring Condition
|
Min. radius of curvature
|
Cx. 1.5 mm
|
Cx. 3 mm
|
|
Min. radius of area
|
Φ7 mm
|
Φ5 mm
|
|
Critical thickness of plate
|
0.5 mm
|
0.3 mm
|
Note: H – nominal value of thickness
Working environment
l Temperature:0℃～40℃
l Humidity:20%RH～90%RH
l Without strong magnetic field
Power
l 2*3.7V Rechargeable lithium batteries
Size and weight
l Size: 198mm×82mm×30mm
l Weight:about 320g
Features:
l With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
l Two measuring modes: single or continuous, changeable.
l Two work modes: direct or group, changeable.
l High precision mode: multiple measurements and automatically data filtering method to reduce disturbance of measure results
l Temperature compensation: compensate the measurement distortion caused by the drifting of temperature.
l Give five statistical values: average, maximum, minimum, measure number, and standard deviation.
l Two calibration methods can be applied to the gauge; and the system error of the probe can be corrected with the basic probe calibration method.
l Data storage: up to 500 measurements storage.
l Set boundary: alarm while measurements out of boundary.
l Battery information indicates the rest capacity of the battery.
l Beep prompting.
l Auto power off function to conserve battery life.
Configuration
|
Item
|
Quantity
|
Remarks
|
|
Main Unit TG110
|
1
|
|
|
Probe
|
1
|
F or N or FN
|
|
Calibration Foils
|
5 PCS
|
|
|
Zero plate
|
1
|
Iron or Aluminum
|
|
Battery
|
1
|
CR123A, 3V
|
|
User Manual
|
1
|
|
|
Certificate
|
1
|
|
|
Warranty card
|
1
|
|
|
Feedback submission
|
1
|
|
