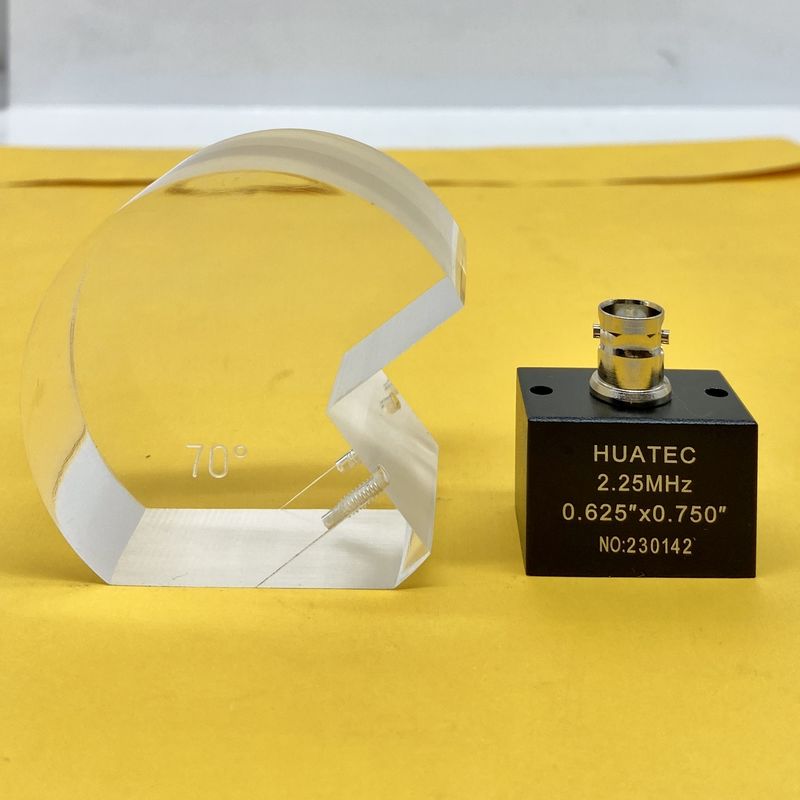

AWS Ultrasonic Weld Seam Probe 45° 60° 70° Angles 2-2.5MHz

The Weld Seam Inspection Ultrasonic AWS Probe & Block is designed for precision inspection of weld integrity in industrial applications.

• Compliance with specifications: Meets or exceeds all requirements in AWS Structural Weld Standard D1.1
• Multiple angles: Standard refraction angles of 45°, 60° and 70° for versatile inspection capabilities
• Excellent performance: High sensitivity for clear defect detection with long service life
• Convenient connection: BNC connectors for stable, reliable connections and easy installation

Primarily used for ultrasonic testing of bevel welds and heat-affected zones in plate thicknesses of 8-200mm (5/16in. - 8in.). Widely applied in non-destructive testing for steel structures, bridges, and shipbuilding to detect cracks, pores, and slag inclusions.

Includes wedges for generating 30° transverse waves and 70° longitudinal waves in steel materials. Features 30-70-70 technology for quantitative crack measurement. Also available with Snail wedges and Serrated wedges for different inspection requirements.
